Dual Electronics ALB12 - 12" Amplified Subwoofer In A Ported Enclosure

Dual Electronics ALB12 - 12" Amplified Subwoofer In A Ported Enclosure

The Dual Electronics ALB12 powered subwoofer is the perfect “all-in-one” solution when adding bass to any system or just to save space. Featuring a 12” subwoofer in a tuned-ported enclosure powered by an internal 300 watt amplifier. Ideal for cars, trucks and SUV's.

Woofer

  • Size 12"
  • SPL (db @ 1w/1m) 87dB
  • Frequency Response 25Hz - 200Hz
  • Nominal Impedance 4 ohm
  • Cone Material Polypropylene
  • Surround Material Foam

Enclosure

  • Style Tuned-ported
  • Dimensions (WxHxD) 18.89" x 14.17" x 11.57"

Integrated Amplifier

  • RMS Power 100 Watts
  • Peak Power 300 Watts
  • Signal to Noise Ratio 85dB
  • Frequency Response 20Hz - 200Hz
  • Variable Crossover Frequency 40Hz - 160Hz
  • Built-in Phase Switch 0-1800
  • Signal Input Low-level (RCA)
  • Power Wire Gauge 12 AWG - Recommended
  • Ground Wire Gauge 12 AWG - Recommended
  • Fuse Replacement 15A

For more information, visit www.dualav.com.

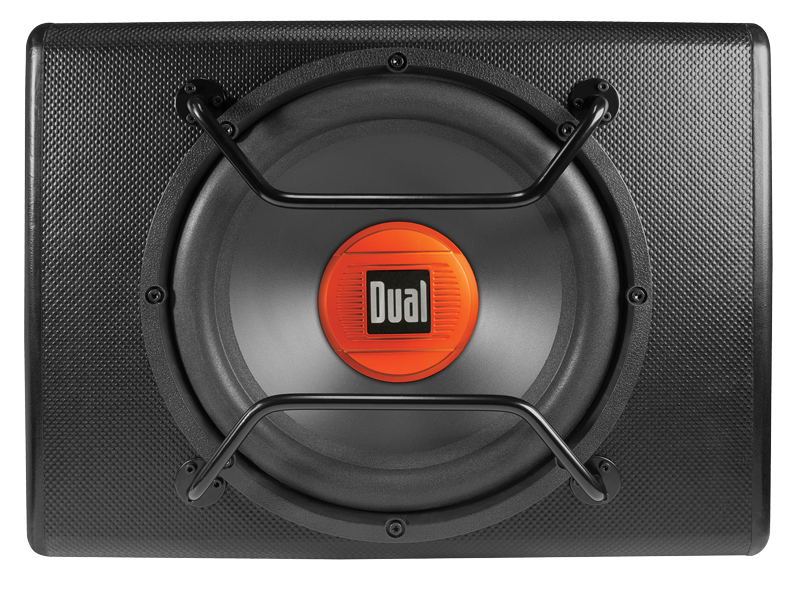

dual electronics ALB12 12 Amplified Subwoofer Ported Enclosure pasmag 03

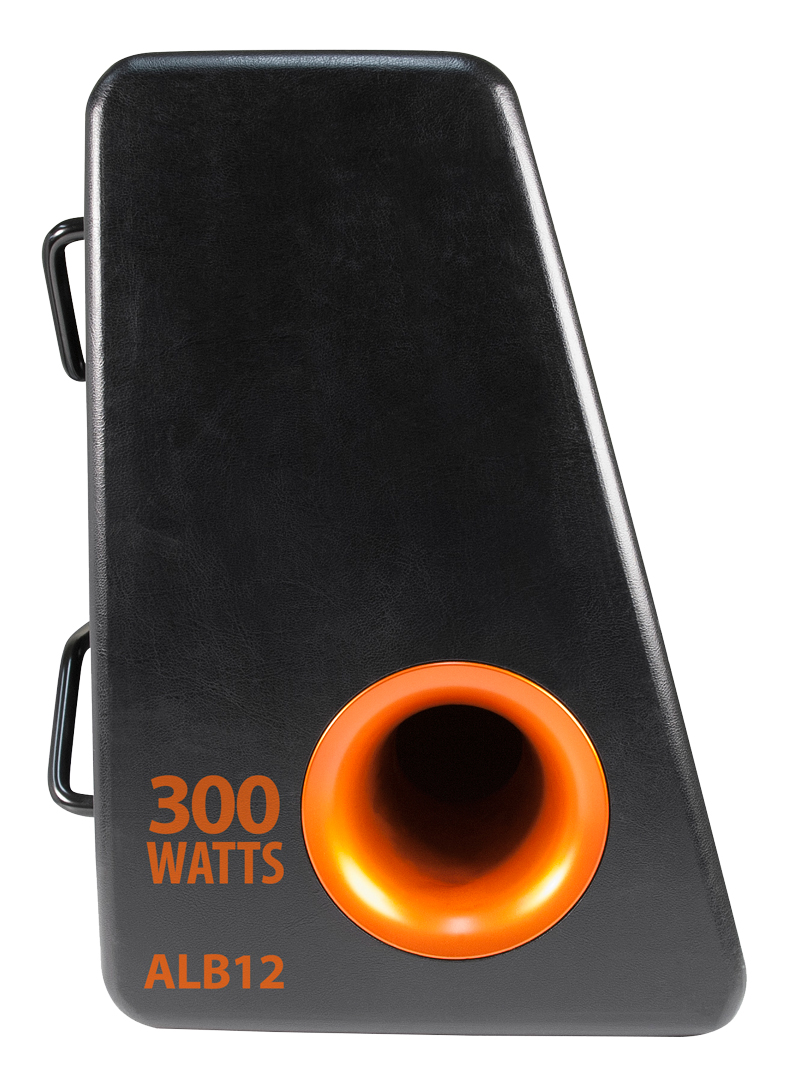

dual electronics ALB12 12 Amplified Subwoofer Ported Enclosure pasmag 04

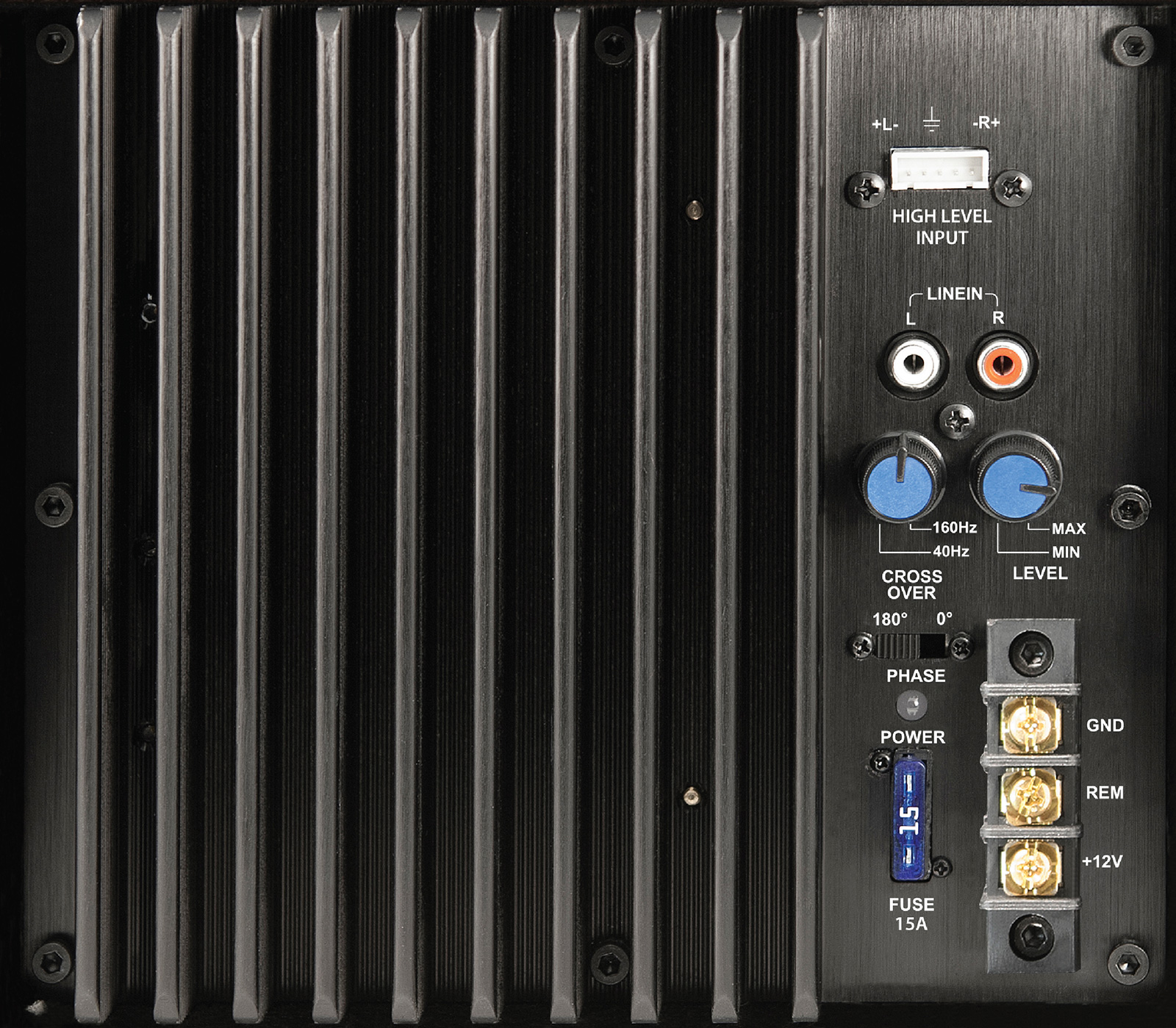

dual electronics ALB12 12 Amplified Subwoofer Ported Enclosure pasmag 02

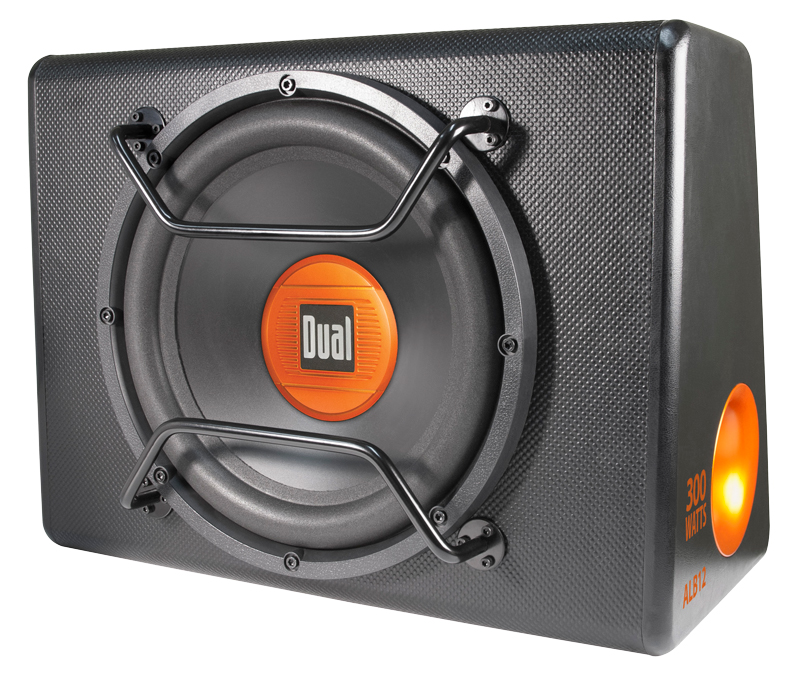

dual electronics ALB12 12 Amplified Subwoofer Ported Enclosure pasmag 01
