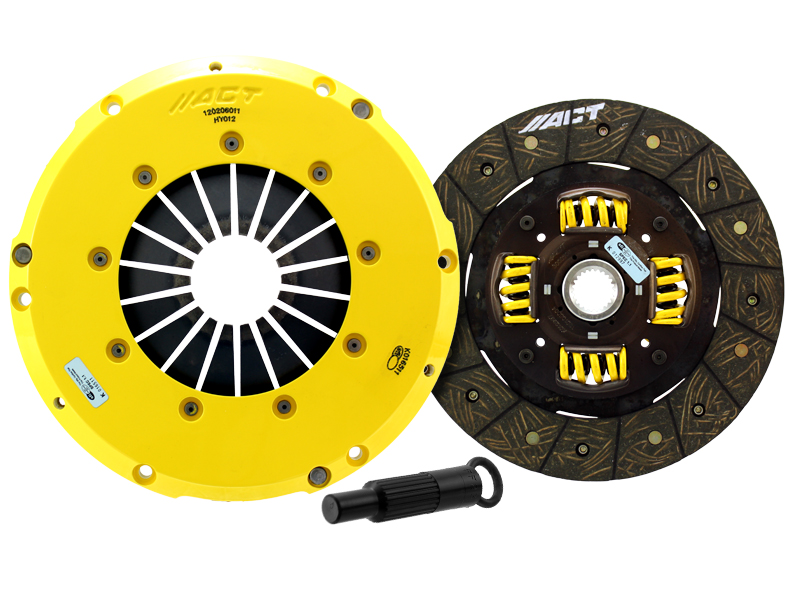

CT's new clutch kits for the 2010 Hyundai Genesis Coupe 2.0L Turbo include a HY012 pressure plate, a choice of disc and alignment tool. The HY012 pressure plate is manufactured using a billet aluminum cover which makes it both stronger and lighter in weight. It utilizes a ductile iron friction surface which meets SFI requirements and is assembled with stronger straps and rivets. It also incorporates hardened diaphragm fingers for decreased wear and provides a 64 percent increase in clamp force over the stock.
The ACT Street clutch kits combine the HY012 pressure plate with a performance organic street disc. The disc features premium organic friction materials able to withstand increased heat and abuse, steel-backed linings for high-burst strength and modifications engineered for quicker shifting. The ACT Street clutch kit provides a moderate and consistent pedal feel, smooth engagement and significantly improved durability. These kits meet SFI Spec 1.1 and have increased torque capacity up to 365 lbs./ft.
The ACT Race clutch kits combine the HY012 pressure plate with a cerametallic Xtreme Race disc, which is available in 6- and 4-pad spring-centered and rigid-hub designs. These discs are very durable while allowing for quick shifting. The Xtreme Race discs are for high-powered engines and recommended for track use only. The ACT Race clutch kits meet SFI Spec 1.1 and will hold 465 lbs./ft. of torque.
