Alpine Electronics Expands The Halo Family To Offer Complete Sound System Solutions

Alpine Electronics Expands The Halo Family To Offer Complete Sound System Solutions
Alpine Electronics of America, Inc. introduced a new sound system lineup for the Halo category that includes a 10-inch and 12-inch ported subwoofer enclosure and remote bass knob. The enclosures are pre-loaded with S-Series and R-Series subwoofers. They debuted today during the 2020 International CES, taking place at the Las Vegas Convention Center from Jan. 7-10.

“This sound system was designed to complement the Halo display in both power and performance for a premium sound experience,” said Mike Anderson, Vice President and General Manager, Brand Business Unit, Alpine Electronics of America, Inc. “With the new modular design, customers can enjoy a single box design but have a flexible upgrade path. A single box can be used or two enclosures can be linked together with an optional kit to create a dual sub enclosure.”

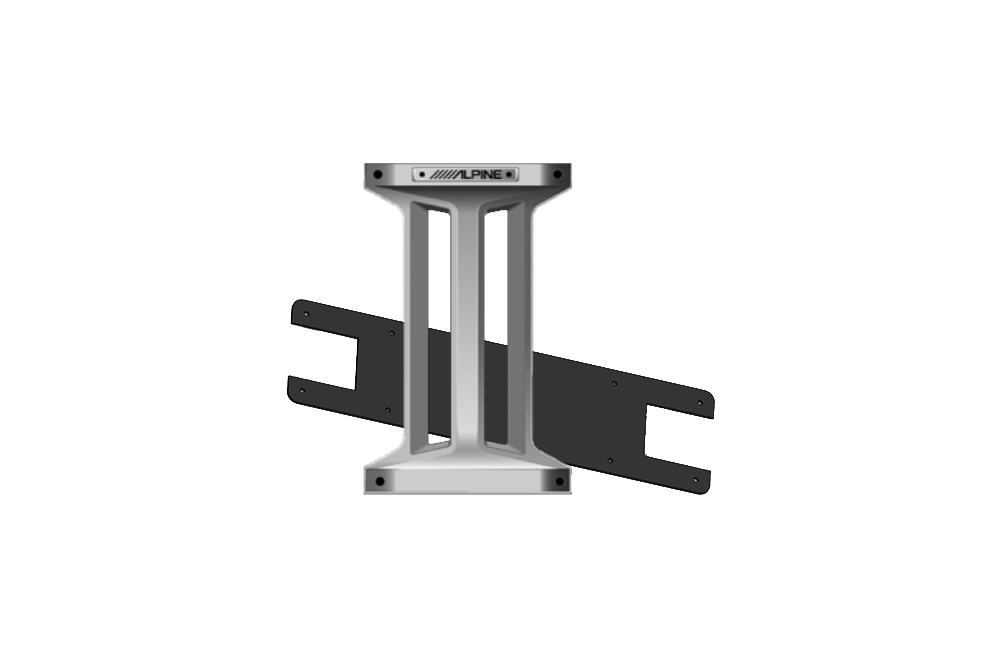

Alpine Electronics Halo Pre Loaded Subwoofer Enclosure CES 2020 pasmag 04

Enclosure Stacking Features

Unique to Alpine, the subwoofer 10-inch and 12-inch enclosures are available as a single or “linked” format with an optional mounting bracket. This innovative design allows the sound consumer the option to easily add more bass to their system.

The optional mounting bracket (sold separately) is available in a 10-inch KTX-H10 or 12-inch KTX-H12 solution that mounts to the face of the subwoofer and links for a sturdy, dual-subwoofer enclosure. The silver enclosure trim matches the steel bracketing and Halo display trim for a synergized look.

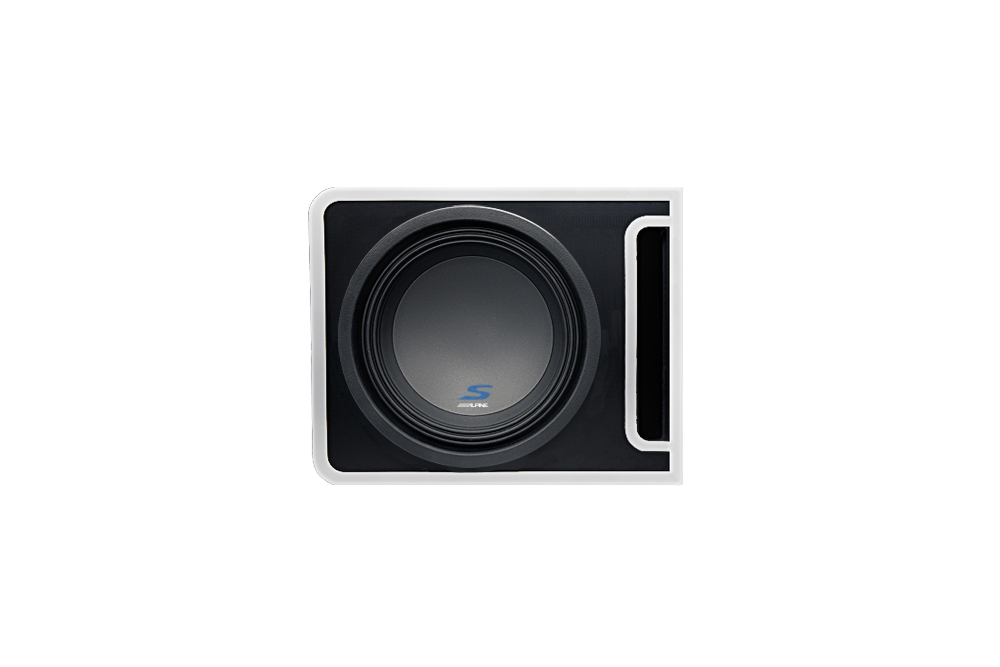

Alpine Electronics Halo Pre Loaded Subwoofer Enclosure CES 2020 pasmag 02

Optimized Performance

The ported enclosure design delivers a higher total sound output for deep, powerful bass, reliable sound reproduction and overall great sound quality. The 10-inch enclosure is tuned to 36 Hz while the 12-inch enclosure is tuned to 35 Hz for optimized performance with Alpine’s S-and-R-Series subwoofers.

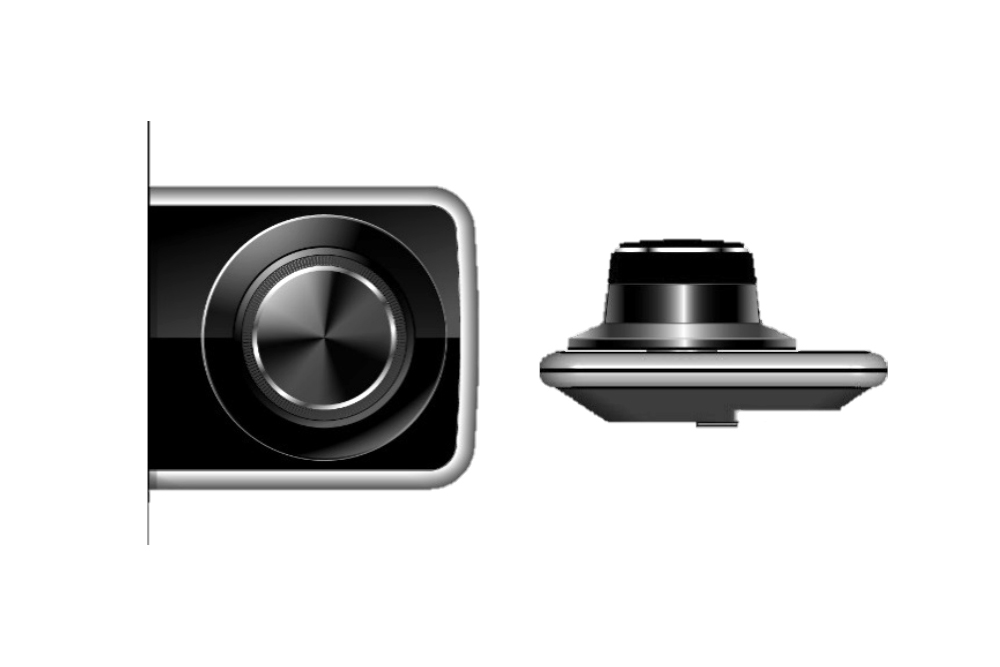

Alpine Electronics Halo Pre Loaded Subwoofer Enclosure CES 2020 pasmag 01

Remote Bass Level Control Anywhere

Bass levels can be controlled with the RUX-H01 Remote Bass Knob for Halo (sold separately). The knob can be mounted to any 9-inch or 11-inch Halo screen or anywhere in the vehicle for quick bass level adjustments.

The RUX-H01 is compatible with Alpine amplifiers and is multi-amp capable (standard phone cable splitter required) and can adjust the gain from 0 to -12 dB. The bass knob is designed to match the aesthetic of the Halo displays and subwoofer enclosures. The smooth tapered edges and silver finish provide a premium look that compliments the Halo displays.

The pre-loaded subwoofer enclosures, optional mounting bracket, and remote bass knob will ship in May for the following prices:

  • S-SB10V $350 SRI
  • S-SB12V $370 SRI
  • R-SB10V $450 SRI
  • R-SSB12V $470 SRI
  • KTX-H10 $130 SRI
  • KTX-H12 $130 SRI
  • RUX-H01 $80 SRI

All models will be for sale at Alpine Authorized retailers or online at www.alpine-uhttps://www.alpine-usa.com/sa.com through Crutchfield. Installation options can be found on the Alpine-USA website through the store locator.

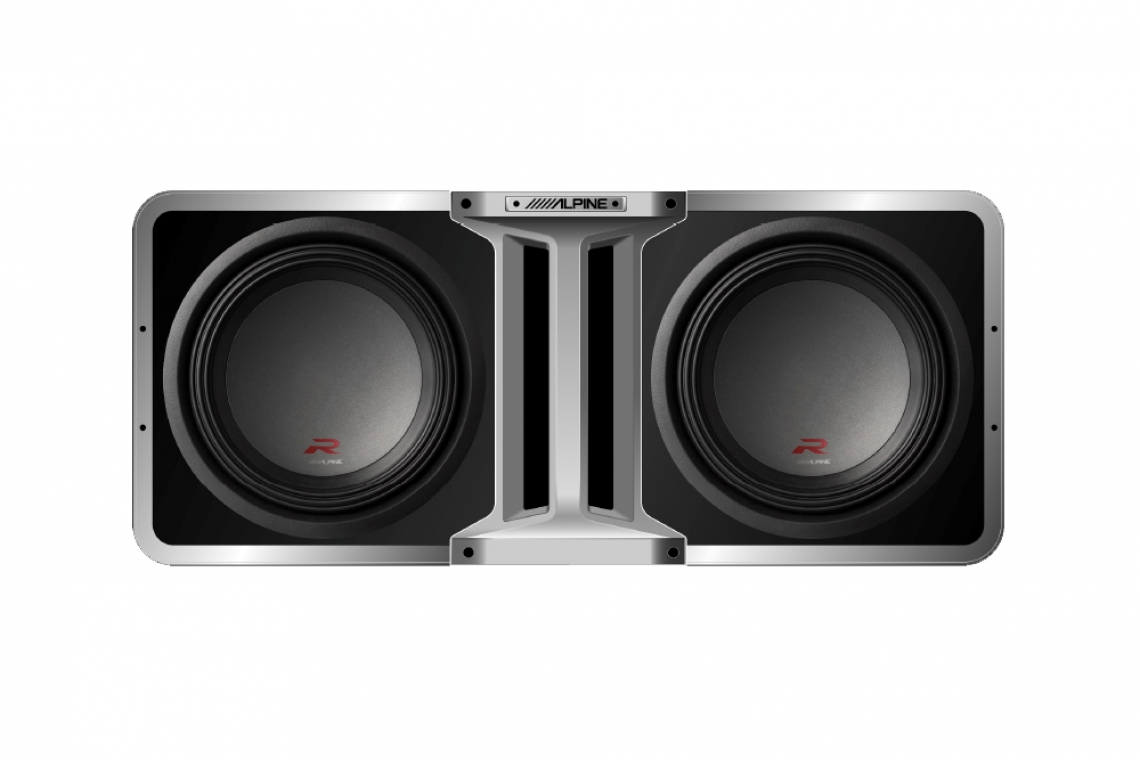

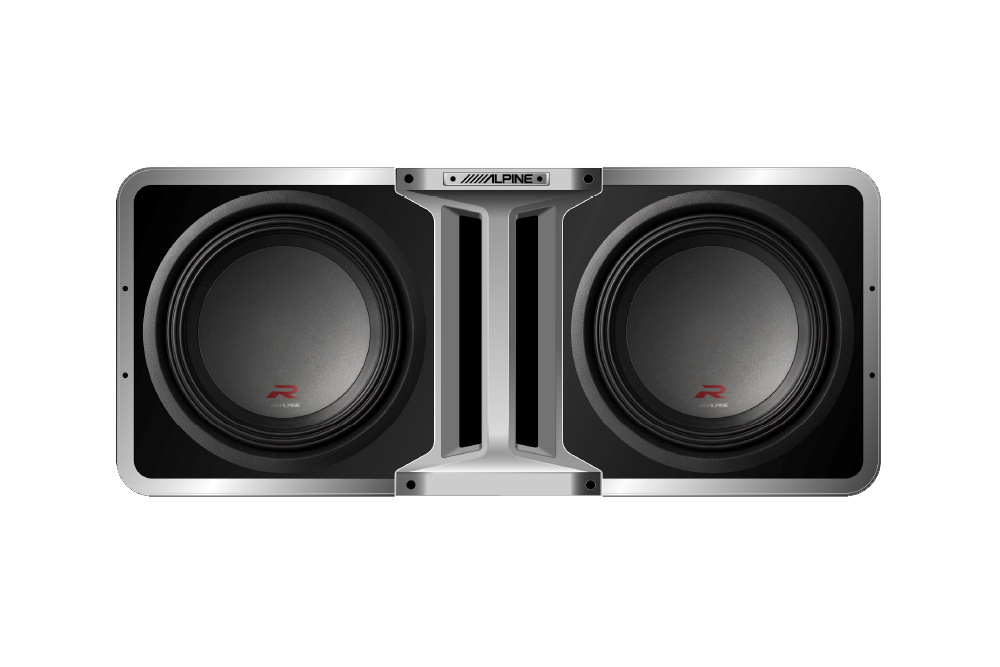

Alpine Electronics Halo Pre Loaded Subwoofer Enclosure CES 2020 pasmag 03

Features:

S-SB10V Pre-Loaded S-Series 10-inch Subwoofer Enclosure

  • Includes S-W10D4 wired in parallel
  • 600W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 28-200 Hz
  • Vented enclosure tuning frequency: 36 Hz
  • Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D
  • Available in May SRI: $350

S-SB12V Pre-Loaded S-Series 12-inch Subwoofer Enclosure

  • Includes S-W12D4 wired in parallel
  • 600W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 26-200 Hz
  • Vented enclosure tuning frequency: 35 Hz
  • Dimensions 17-inch W x 14.625-inch H X 15-inch D
  • Available in May SRI: $370

R-SB10V Pre-Loaded R-Series 10-inch Subwoofer Enclosure

  • Includes R-W10D4 wired in parallel
  • 750W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 26-200 Hz
  • Vented enclosure tuning frequency: 36 Hz
  • Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D
  • Available in May SRI: $450

R-SB12V Pre-Loaded R-Series 12-inch Subwoofer Enclosure

  • Includes R-W12D4 wired in parallel
  • 750W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 24-200 Hz
  • Vent tuning frequency: 35 Hz
  • Dimensions 17-inch W x 14.625 H x 15-inchD
  • Available in May SRI: $470

KTX-H10 Linking Kit for Two 10-inch Subwoofer Enclosures

  • Aluminum rear link plate
  • 10-inchFront ABS / Steel reinforced port link
  • Center link stabilizing dowels
  • Alpine port logo plate
  • All hardware included
  • Available in May SRI: $130

KTX-H12 Linking Kit for Two 12-inch Subwoofer Enclosures

  • Aluminum rear link plate
  • 12-inch Front ABS / Steel reinforced port link
  • Center link stabilizing dowels
  • Alpine logo plate
  • All hardware included
  • Available in May SRI: $130

RUX-H01 Alpine Halo Remote Bass Knob

  • Remote level controller for Alpine amplifiers
  • Adjusts gain from 0 to -12 dB
  • Multi-amp capable (standard phone cable splitter required – not included)
  • Available in May SRI: $80

For more information, visit www.alpine-usa.com.
