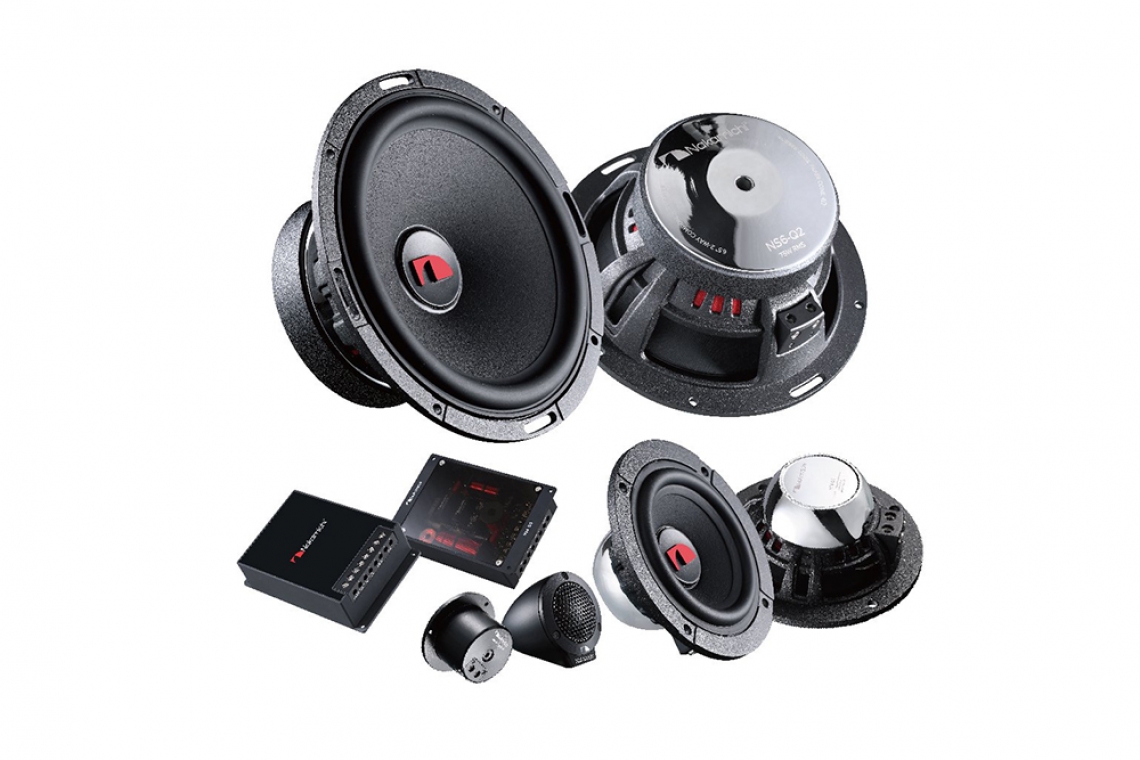

Nakamichi NS6-Q3 3-Way Component Speaker System

Nakamichi NS6-Q3 3-Way Component Speaker System

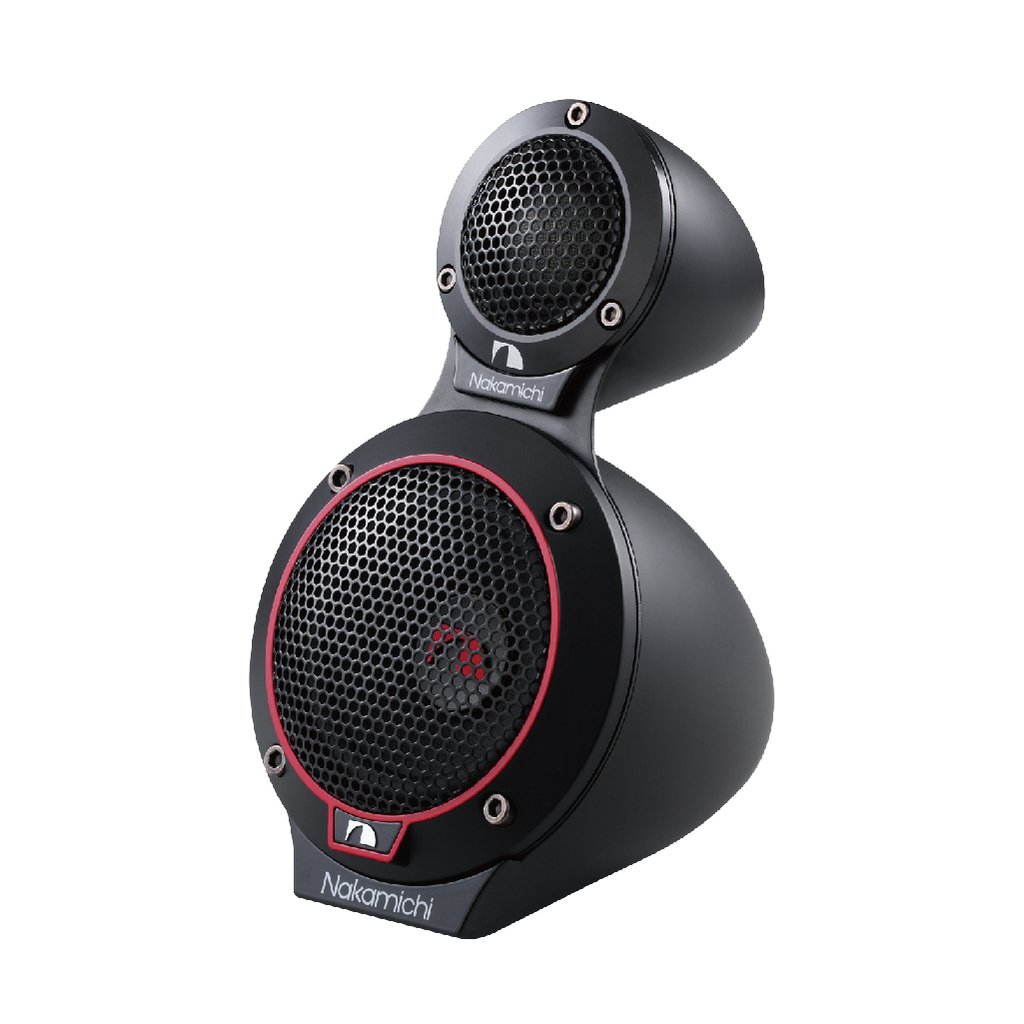

The Q3 is Nakamichi's premium 3 Way Component Speaker system, featuring a rotating tweeter housing to suit each individual vehicles pillar installation before deciding on a more permanent housing.

Crafted with premium materials, the Q3 is specifically designed with each individual part in mind to provide a balanced response with pristine highs and robust mids.

SPECIFICATIONS

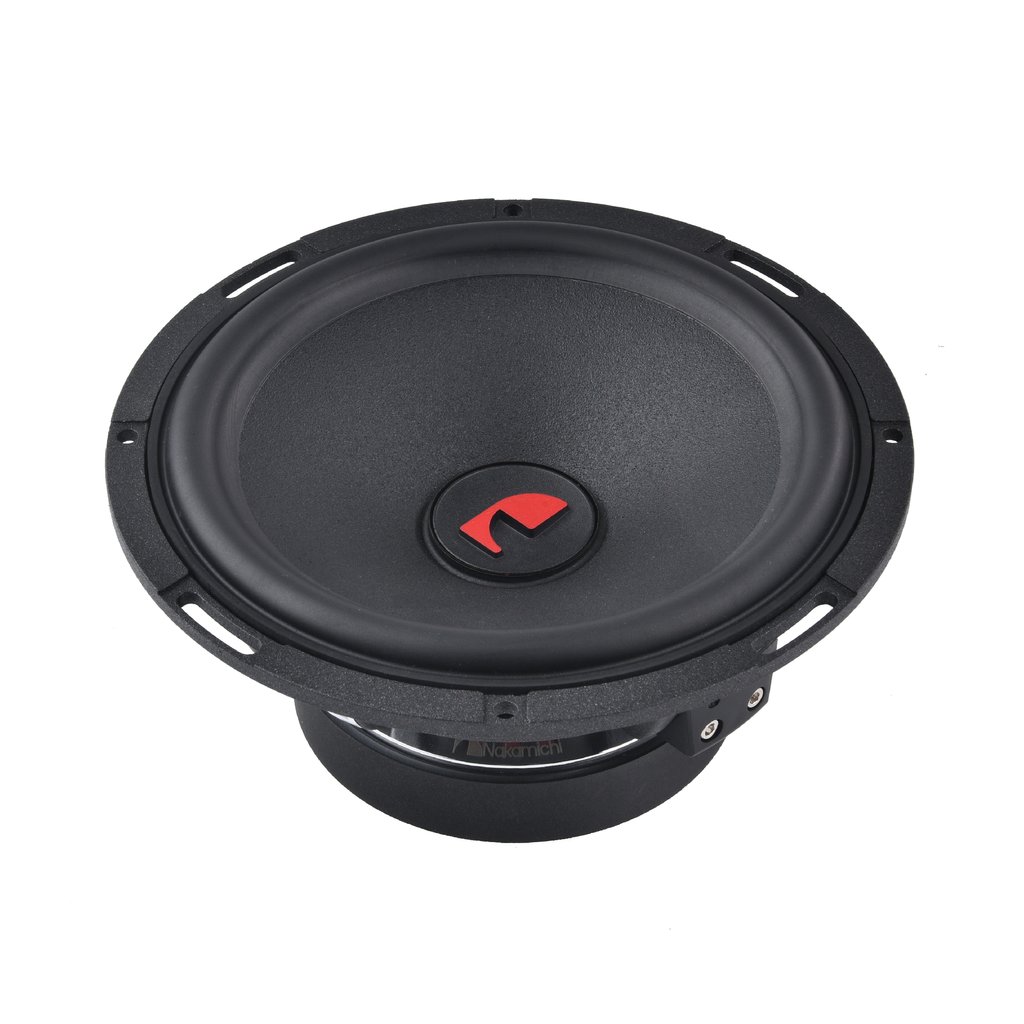

Woofer

  • N-Power: 75W
  • Impedance: 4Ω
  • Sensitivity: 88dB±3dB
  • Frequency Response: 50Hz -20kHZ
  • Voice Coil: KSV 35mm
  • Magnet Mass: 20Oz
  • Net Weight: 1541g
  • Mounting Depth: 75mm
  • Mounting Diameter: 140mm

Mid-Range

  • N-Power: 30W
  • Impedance: 4Ω
  • Sensitivity: 85dB
  • Frequency Response: 100Hz -20kHZ
  • Voice Coil: KSV 25mm
  • Magnet Mass: 6.5Oz
  • Net Weight: 247g
  • Mounting Depth: 37mm
  • Mounting Diameter: 74mm

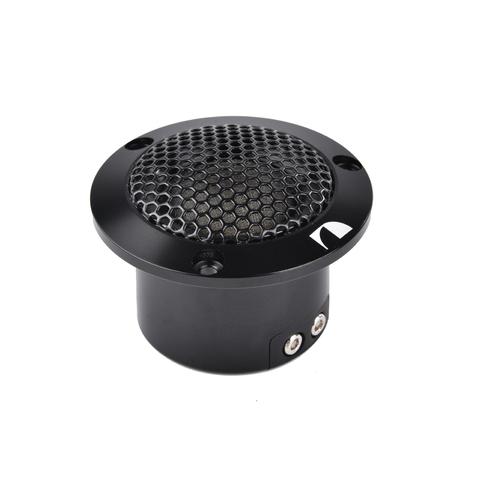

Tweeter

  • N-Power: 20W
  • Impedance: 4Ω
  • Sensitivity: 89dB
  • Frequency Response: 800Hz -20kHZ
  • Voice Coil: ASV 25mm
  • Net Weight: 102g
  • Mounting Depth: 30mm
  • Mounting Diameter: 42mm

For more information, visit nakamichicaraudio.com.

Nakamichi NS6 Q3 component speakers car audio pasmag 02

Nakamichi NS6 Q3 component speakers car audio pasmag 03

Nakamichi NS6 Q3 component speakers car audio pasmag 04

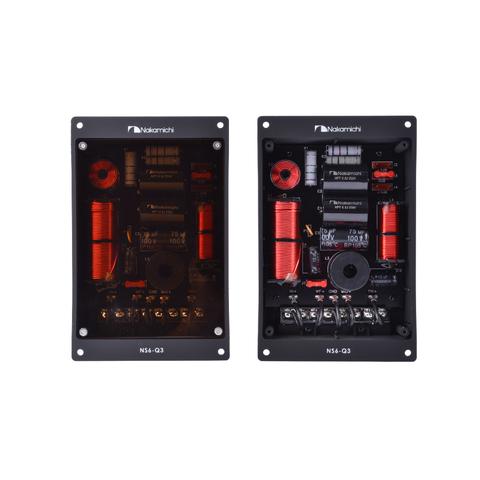

Nakamichi NS6 Q3 component speakers car audio pasmag 05
