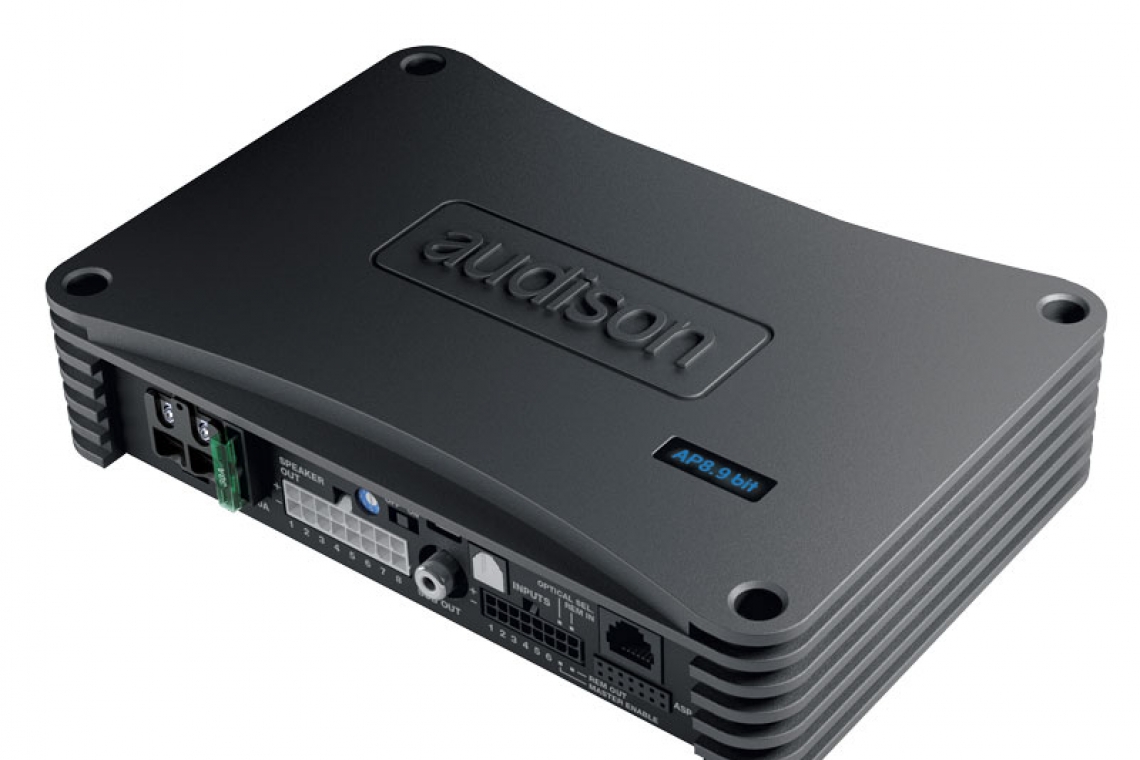

Thanks to the 9-channel built-in DSP, the compact AP8.9 bit achieves impressive performances in OEM Integration applications. The powerful management software ensures a wide array of adjustments to improve the acoustic response, and thanks to the innovative power supply stage, a power of 520 W total can be achieved in an extremely compact case.
POWER (CEA-2006): 35 W x 8 @ 4 ohms (<1% THD+N, 14.4 V)
CROSSOVERS: Full-Pass / High-Pass / Low-Pass / Bandpass
Linkwitz @ 12/24 dB – Butterworth @ 6/12/18/24 dB
EQUALIZATION: N.9 parametrics equalizers: +/- 12 dB; 10 pole; 20/20kHz
FREQUENCY RESPONSE: 10 Hz - 22 kHz
S/N RATIO (CEA-2006): 95 dBa
DIMENSIONS (IN.): 7.8 x 1.8 x 5.27
