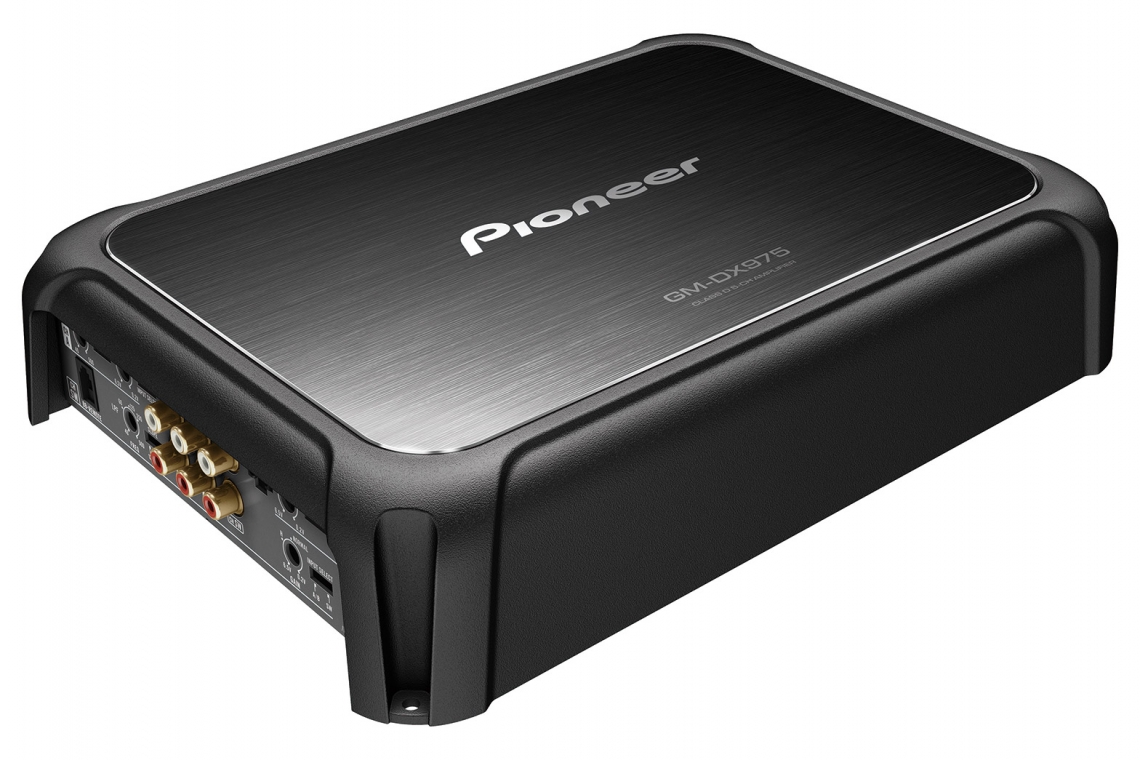

Pioneer Electronics GM-DX975 Amplifier

Pioneer Electronics GM-DX975 Amplifier

Pioneer’s 5-channel amplifier produces impressive power in an all-in-one solution designed to deliver big sound without sacrificing space. Ideal for any vehicle including compact vehicles and pickup trucks with limited real estate, the GM-DX975 also offers installation flexibility for a variety of other applications including boats and ATVs/UTVs. The amplifier is rated at 2,000 watts max with the A and B channels rated at 75 watts x 4 (RMS) and features a Bass Boost Remote.

Power (CEA-2006)

  • 75 W RMS X 4 + 350 W X 1 RMS

Crossovers

  • High Pass/Low Pass crossover 40 to 500Hz, -12dB/oct; low pass crossover (sub ch) 40 to 500HZ, -12dB/oct or -24dB/oct

Equalization

  • Bass EQ control provides up to 18dB of boost at 50Hz (sub ch)

Channels

  • 5-Channel

Frequency Response

  • 10 Hz ~ 50 kHZ

Class

  • D

S/N Ratio

  • 94 dB

RMS Power/Channel

  • 61-80W

Dimensions

  • 12.4" x 2" x 7.87"

MSRP

  • $370.00

For more information, go to http://pioneerelectronics.com/car.
