A single 10W6v3 subwoofer delivers very high SPL while retaining excellent sound quality

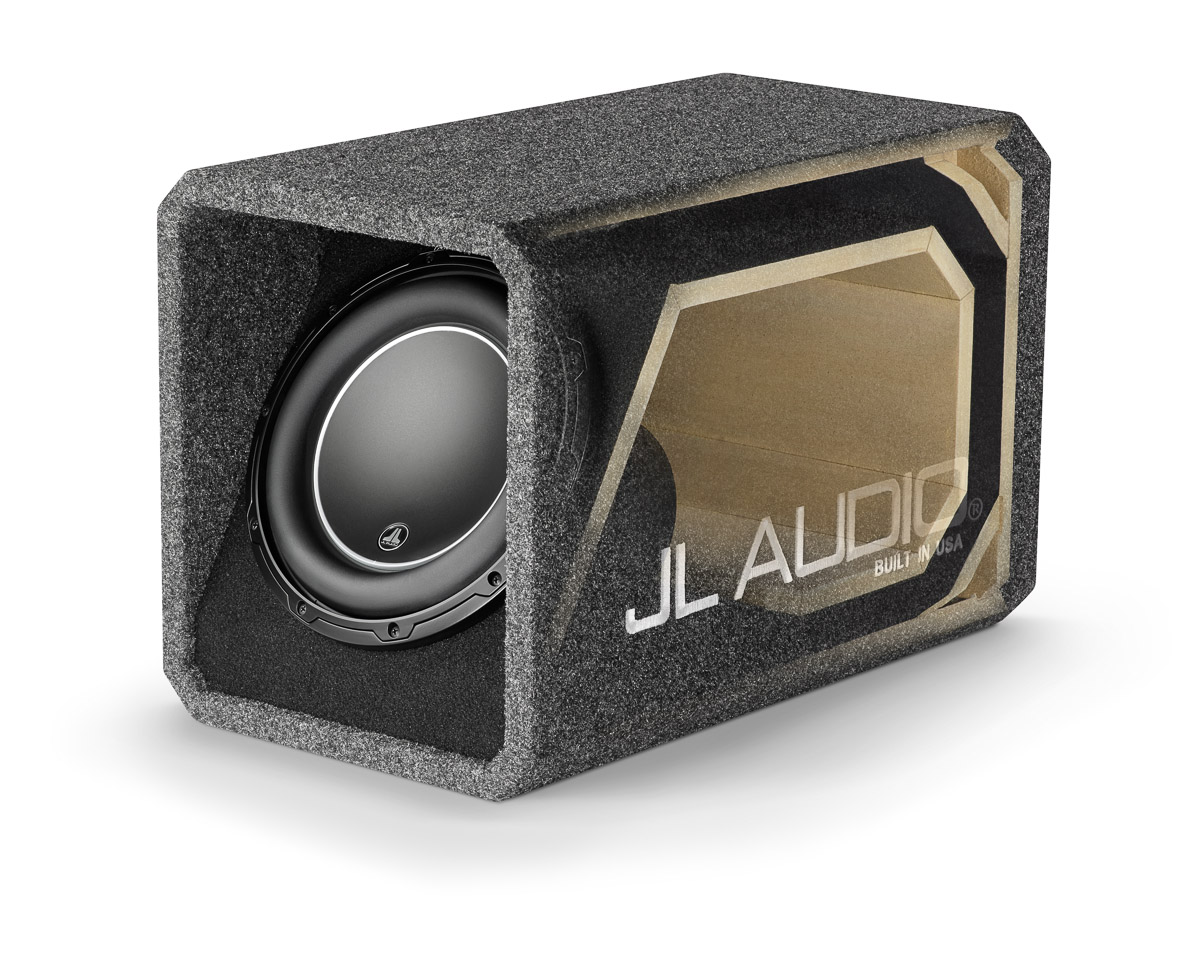

JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output. The new HO110-W6v3 ported enclosure combines the high power handling and small enclosure requirements of the JL Audio 10W6v3 subwoofer driver, creating a very compact subwoofer system that is capable of impressive output with moderate amplification.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,65,292) wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W6v3 driver. This enclosure design has been carefully engineered to the optimum ported alignment for the 10W6v3, and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer. A steel mesh woofer grille insert can be purchased separately (Model: SGR-10W6v2/v3), if additional woofer protection is desired.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the side surface of the enclosure.
Construction: CNC-Cut High-Grade MDF, built in Miramar, Florida USA
Subwoofer Driver: JL Audio 10W6v3-D4, built in Miramar, Florida USA
Recommended amplifier power: 200 - 600W
Continuous Power Handling: (RMS)
600 W
Nominal Impedance: 2 ohms
Enclosure Type: Chamber-coupled, slot-ported, end-firing design
High-Output (H.O.) Enclosure Design (U.S. Patent #6,625,292)
Detailed Information: HO models use our patented, chamber-coupled port design. The slot-port wraps around the inner enclosure and terminates on the mounting plane of the woofer. This provides the necessary surface area and port length to maximize the performance of the driver, while also coupling the port output and direct woofer output to radiate together into the listening space.
Suggested Retail Price: USD $699.95
Availability: Now Shipping
