Rockford Fosgate T2500-1
All Pages

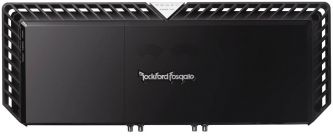

T2500-1b_top-1_optFor over 25 years, Rockford Fosgate has been known for building famed and in many cases, legendary high power amplifiers, and it seems there is no end to this tradition. Now, from one of the original founders of serious car audio power comes a new, formidable subwoofer-driving powerhouse.
The Rockford Fosgate T2500-1 amplifier is part of the widely acclaimed Power Series. The new for ‘09 design brings a marriage of Rockford’s patented Class bd technology and a polished, and more importantly technically significant cosmetic design. With power output levels rated at 1000, 1800, and 2500 watts into respective 4, 2, and 1 ohm loads the T2500-1 should have plenty of power for basically any application. But for those Fanatics who live by the old RF motto of “Too Much Is Just Right”, the T2500-1 is also a strappable design, allowing you to drive a single woofer coil with two of these beasts! While the model is new for 2009, the cosmetic changes are evolutionary, rather than revolutionary but incorporate some cool changes when compared to the previous year’s models. Most notably, there are stylish and well executed power and voltage meters built into the top cover of the amp, and while invisible when shut off, they can put on quite a show when the amp is at full song. The power meter is basically a cool bit of bling with no real significant purpose, but the battery voltage meter is quite accurate and does a great job of letting you know the condition of your electrical system, which as you read on, you’ll find out why it’s so important.


Measuring 22 inches long, but only 8 inches wide and 2 inches high, the Power Series amplifier’s size belies the amount of power on tap, by incorporating a technology that Rockford Fosgate calls DTM or Dynamic Thermal Management. What this means in real terms, is that the amplifiers can be driven hard for long periods of time, without worry about thermal protection shutoff spoiling the party. The key to this technology is a method of constantly monitoring the amplifiers temperature and operating conditions, and controlling the output current to provide longer playing times. In practice, the system works very well, and is virtually undetectable while listening to music.


Other nice upgrades from last years amps include panel mount style RCA’s for both input and output signals, and easier to connect power and speaker terminals, which are still all found on the long front edge of the amplifier. And speaking of terminals, the engineers at Rockford Fosgate clearly understand the kind of current this much power requires, both on the input and output side of things. The Power and Ground terminals now easily accommodate 1/0 wire, and the speaker terminals will accommodate 8 gauge speaker wire. The set screws that retain the cables are now a hex head style, and are thankfully finally all the same (4mm) size! This is the type of fundamental feature change that makes life simpler for installers and shows that even a large company like Rockford pays attention to feedback from the install bays around the world.

Inside the T2500-1 is a twin toroid power supply that uses no less than twelve Fairchild TO-247 case size N-Channel MOSFETs, each rated at 75A, and there are another eight TO-247 size International Rectifier HEXFETs in the output section, rated at a minimum of 30A each, giving the output of the amplifier a conservative current output capability of 240A! Lest you think the amp is all brawn and no finesse, I should direct your attention to small but important details, such as the use of top quality FR-4 double- sided plated-through glass epoxy circuit boards, high speed polypropylene capacitors, and there is even a special vertically mounted board that is designed to shield the sensitive input circuitry from unwanted electromagnetic interference caused by the power supply.


The vast majority of the parts used are surface mount type, and in the case of the dozens of resistors, they are all 0% tolerance surface mount type, which increases reliability and reduces performance differences between serial numbers.


The T2500-1 comes complete with a full suite of features that you’d expect on an amplifier of this type. The input gain sensitivity has an adjustment range from about 200mV to over 5V, which provides over 28dB of adjustability. Crossover control is handled by a fourth order (-24dB) network, and is adjustable from 35Hz to 250Hz. A -12dB per octave switchable subsonic filter is also included, which, when engaged, rolls off the very lowest frequencies beginning at about 28Hz. Additional signal control is provided by a 0-180° phase switch, and the Single/Master/Slave switch which allows you to configure the amplifier to suit your particular system design. As with virtually every amp Rockford Fosgate has produced since the earth cooled, the Punch EQ is also along for the ride. With as much as 18dB of boost at 45Hz, and a properly configured filter Q, it’s easy to dial in the amount of “help” needed to make up for old recordings, or road noise masking the bottom end. A remote version of the Punch EQ control can be added to the amplifier to allow you bass EQ adjustability form the driver’s seat.

Crossover Range - Freq_opt Max Flat - Frequency R_opt
In terms of measured performance, the Power T2500-1 bested all of its rated power specifications, delivering well over 3kW into a 1 ohm load. While S/N specs are seldom great in these types of amplifiers, the T2500-1 posted a respectable -65.8dBA number, measured at 2V of output. Efficiency was very good, at a touch over 83% at full 2 ohm power, and still maintaining better than 74% at 1/3 power. That said, you have to understand that even with great efficiency numbers, delivering over 3000 watts of power is going to take a pretty stout electrical system, the maximum current demands of this powerhouse were 310 amps!
