CDE-103BT_opt One of the benefits of reviewing products every issue is that we get a chance to occasionally test something before or just as it becomes available in the marketplace. And that’s the case this time, because our contacts at Alpine Electronics sent one of their brand new head units to evaluate. After watching other brands incorporate Bluetooth functionality directly in their head unit chassis, we finally get an Alpine that does the same. This is one of the first Alpine single DIN sized models to fully incorporate Bluetooth hands free technology, without having to buy anything else. Yep, finally… the CDE-103BT is an Alpine unit with built-in Bluetooth, no adapters required! COOL FEATURES

The Alpine CDE-103BT is a single DIN sized headunit that retails for the same $249.99 price in the USA and Canada. For that price, you get a full featured AM/FM/CD/MP3 player which also provides full speed connectivity of an iPod or iPhone with the optional KCE-433iV cable. The CDE-103BT meets Apple’s specifications for “Made for iPod” and “Works with iPhone” compatibility. And if you’re like me and have thousands of songs on your iPod, you’ll especially appreciate Alpine’s “Quick Search” file search mode. This clever system splits your songs into six groups accessed via the preset buttons on the faceplate. This allows you to quickly jump to a section, rather than scroll through the entire alphabet to get to where you want to be. Another search mode is also handy, this one allows you to scroll through the various hierarchies such as Playlist, Artist, Album, Song, Podcast, Genre etc. Either way, it’s fairly painless to find the track you’re looking for.

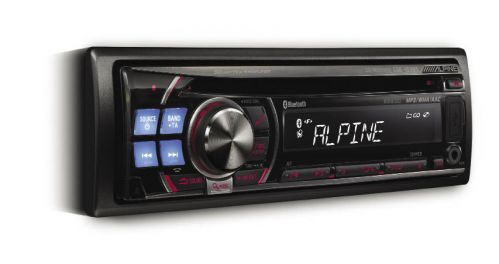

The Alpine unit has a removable faceplate, and an easy to read, single line display with large white characters. Button colors can be set to red, orange, green or blue to match almost any interior lighting. Also on the front panel is a USB connection for those who prefer to carry their music on a USB drive, and for users of personal music players other than the iPod, there is also a 3.5mm Auxiliary input jack.

But what really sets this new model apart from last year’s Alpine head units is the CDE-103BT now comes with Parrot-powered Bluetooth functionality integrated right into the unit. And of course Alpine also includes the remote mount microphone, so there really is nothing else to buy. The setup of the Bluetooth system is pretty straightforward, and the CDE-103BT is compatible with most current Bluetooth enabled cell phones. You can import up to 1,000 numbers from your cell’s phone book, and even use voice dialing if your phone supports it.


The most often used control on any head unit is the volume control, and I’m pleased to report that Alpine continues to use the best possible method for this frequently used function, the rotary encoder, or “a knob”, CDE-103BT_agl_sh_optas my buddy Jeff calls it. The next most often used buttons are usually track up and down, and the CDE-103BT gets high marks there too, with easy to locate large buttons for these functions. In fact, all of the controls are thoughtfully placed, and the ergonomics of the Alpine CDE-103BT lend themselves to being easy to use without looking or only needing a quick glance.

As with most modern headunits, the Alpine CDE-103BT is equipped with a DSP based processor. This provides all sorts of control capability when it comes to getting your sound adjusted how you’d like it. Built into the innards of this model is a processor that provides a selection of tone control choices, as well as a defeatable, variable frequency high pass crossover. The rear RCA outputs can be converted to subwoofer outputs, and the level of those outputs can be varied either equally with the front outputs, or separately via a subwoofer volume control. And if you’re not planning to use the built-in four channel amplification, there is even a setting that allows you to turn the amplifier off, which reduces current consumption and chassis heat. Nice!

To get your system tuned to suit your needs, the bass and treble controls each offer a selection of four frequencies; 60, 80, 100, and 200Hz for the bass section, and 10, 12.5, 15, and 17.5kHz for the treble section. In addition to that adjustability, you can also select the “Q” or the width of effect that the bass control provides, in 4 increments. Adjustability like this really allows to you to tone down or accentuate a specific region, and is much more useful than a simple bass or treble control. Another nice feature, the DSP processor will not allow excessive boost to be applied that would cause distortion at high volumes, so that’s simply another tuning detail that’s already taken care of for you. If you are using the internal high pass filter, you can set it to 60, 80, or 100Hz.

And the adjustability doesn’t end there. For the Bluetooth settings, of course the system allows you to adjust the volume of the incoming call, as well as select which speakers are used for playback. You can choose to have the incoming call played back on all the speakers, or either of the front speakers, or both front speakers. Additionally, the volume of the microphone can be adjusted as well, to optimize call clarity and minimize feedback.

Read on for Results
